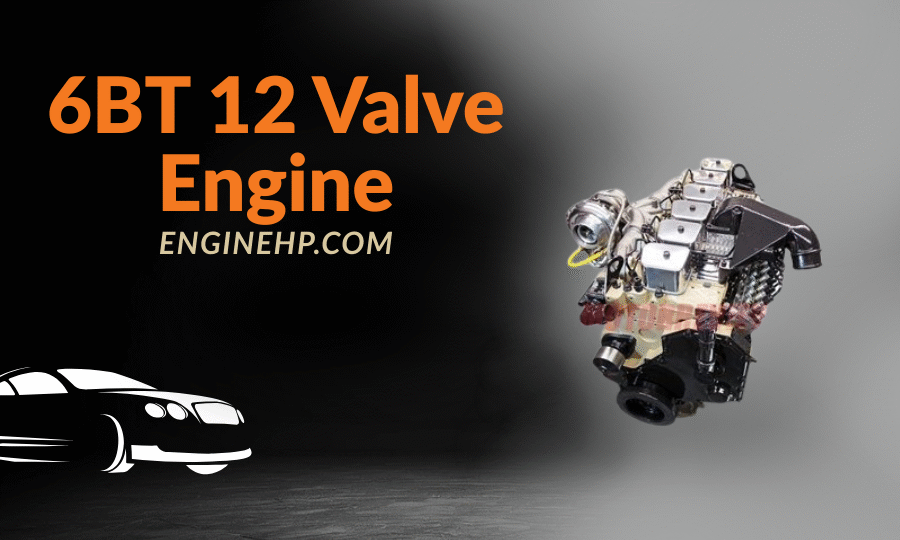

Cummins Engine 6BT 12 Valve Engine Hp, Reliability, and Performance
Introduction:
One of the most legendary diesel engine is the 6BT 12-valve. Characterized by its durability, outstanding reliability, and versatility in its capabilities, the engine has become a vehicle of choice among many users and commercial fleet owners as well as off-roaders. What is so special about the 6BT 12-valve engine? This engine is coveted by the fans of the diesel engine due to its design as well as long-term durability. In this article, we are going to examine the 6BT 12-valve engine closer, discussing its highlights, performance, uses, benefits, and maintenance ideas.
6BT 12 Valve Engine Specifications
| Manufacturer | Cummins |
| Production years | 1989-1998 |
| Cylinder block material | Cast Iron |
| Cylinder head material | Cast Iron |
| Fuel type | Diesel |
| Fuel system | Direct Injection (DI), mechanical injection pump |
| Configuration | Inline |
| Number of cylinders | 6 |
| Valves per cylinder | 2 |
| Valvetrain layout | OHV |
| Bore, mm | 4.02 inch, 102 mm |
| Stroke, mm | 4.72 inch, 119 mm |
| Displacement, cc | 359 cubic inches, 5.9 liters |
| Type of internal combustion engine | Four-stroke, turbocharged |
| Compression Ratio | 17.0 : 1 |
| Power, hp | 160 – 215 hp /2,500 |
| Torque, lb ft | 400-440 lb-ft (542-597 Nm)/1,600 |
| Engine weight | 1100 lbs, 499 kg, dry |
| Firing order | 1-5-3-6-2-4 |
| Engine oil capacity, liter | 12 qts (11.4 liters) with filter. |
| Engine oil weight | SAE 15W40 diesel oil with a dual rating of at least CF4 and at least SG |
| Oil recommendations and capacity may vary depending on the car model, year, and market. Please check the service manual specific to your vehicle! | |
| Oil change interval, mile | 6,000 (10,000 km) or 6 month (3000 miles for severe duty) |
| Cars with this engine | Dodge Ram pickup trucks, buses, marines, agricultural equipment, construction machinery |
What is the 6BT 12-Valve Engine?
6BT 12-valve is a turbo six-cylinder diesel engine produced by Cummins. The 6BT is a part of the famed Cummins B-series, and was innately structured to be used on medium-duty and heavy-duty tasks like trucks, RVs, agriculture, and industrial applications. It has a 12-valve (two intake valves per cylinder and one exhaust valve) and is turbo charged, sharply increasing its performance.
The 6 is in reference to the six cylinders on the engine whereas the BT indicates the engine is powered through turbo and the 12-valve is a reference to the arrangement of the engine. This engine was designed and constructed by Cummins with a focus on being simple and of the ultimate reliability. Compared to electronic fuel injection systems that are used in most modern styles of diesel engines, the 6BT 12-valve has a mechanical injection system and therefore does not produce failures due to computer components.
Key Features of the 6BT 12-Valve Engine
- Turbocharged: A turbocharger is fitted to the 6BT as this allows more air to enter the engine and thereby boosts the engine power. The turbocharged system enhances performance, efficiency and reduces fuel consumption by a big margin.
- Mechanical Fuel Injection: The 6BT has a mechanical fuel injection system that both makes it simpler and more durable compared to electronic fuel injection systems in use today. This design removes one of the engine wear and tear sources and decreases the chances of electronic failure.
- Valve design: The engine consists of 12 valves which is as one cylinder in the engine has two intakes and 1 exhaust. This arrangement results in improved air movement inflow and exhaust, enhanced fuel burn and improved performance.
- Durability and Simplicity: The 6BT engine is also built with rugged construction hence highly durable and can be used in a heavy duty application. It is also mechanically simple to make it easier to maintain with less likelihood of complex and expensive repair.
Performance and Power Output
Among the most outstanding features of the 6BT 12 valve engine is that this engine is very powerful particularly in having high levels of torque. Depending on model and tuning, the 6BT has the ability to produce between 160 and 250 horsepower with 400 to 600 lb-ft of torque depending on various factors. This is especially important in comparison to the engines with the similar displacement, since the torque is an important aspect of the vehicles and machines that are expected to tow heavy loads.
Horsepower vs Torque: Why Torque Matters
Although horsepower seems the initial parameter to be covered, torque has been named as the real superstar when it comes to the diesels, such as the 6BT. Torque is the turning force that moves the vehicle, and torque required especially on heavy-duty situations, like, towing, hacking and off-roading where low RPM uses high torque.
One of the factors that make 6BT superior in cars intended to be used as heavy-duty or off-road warrant is its torque. It has a high torque at low revolutions per minute the result being that vehicles can accelerate with ease and sustain power during towing or hauling and even in demanding situations.
Real-World Performance
The 6BT 12-valve engine performs excellently in a variety of real-world settings. Due to its design, it is more than adequate when dealing with reliability of consistent power needs. Regardless of whether you use it on a towing job, to haul or off-road, you can always count on the 6BT to provide a reliable performance in most environs.
- Towing and Hauling: The 6BT engine is immensely suited to tow heavy weight since it is a torquey engine which would be used in hauling a trailer, a boat or construction equipment. It has the superior towing ability that does not require revving up and is employed most effectively on commercial transportation between trucks, agriculture and so on.
- Off-Roading: The off-road vehicles such as rock crawlers and dune buggies need torque-inclined engines, so the 6BT is quite suitable. The capability of the engine to deliver steady low-end power makes the engine ideal to negotiate tough terrains such as rocky traverse, steep slopes and sand dunes.
Applications of the 6BT 12-Valve Engine
The 6BT 12-valve made in this engine took a huge number of applications and performed exceptionally in all applications in which it was used. Under its various common uses are:
1. Heavy-Duty Trucks
- The 12-valve 6BT engine is used often on commercial trucks of the medium-duty variety and in heavy-duty models. These vehicles must have engines powerful enough to handle a long-distance trip, move heavy weights and be reliable at the same time, day in and day out. The 6BT exceeds these requirements because it offers a light-duty Powertrain with an outstanding capability to haul heavy loads as well as being fuel-economical.
- Famous Truck Applications: Trucks that have applied the 6BT engine include with good reason Dodge Ram 2500 and 3500 (pre 1998) as well as other Freightliner and International models, all of which have campaigned on the power-rich performance and the reliability of the engine.
2. RVs and Motorhomes
The 6BT 12-valve is used in recreation vehicles (RVs) and motorhomes. V owners usually need engines that have high fuel consumption, long life expectancy and having sufficient strength to drive the vehicle with its added weight. The 6BT offers such qualities ensuring RVs have the ability to cruise long distances per fill-up without having to relentlessly stop to refuel as well as meet steady and efficient power during uphill climbs and steep grades.
3. Agricultural Machinery
To power farm and ranch tractors, combines and other farm equipment, farmers and ranchers frequently employ the 6BT engine. High engine torque at low speeds ideally suits these heavy-duty applications, where long hours of operation are required, at times in harsh conditions.
4. Off-Road and Military Vehicles
Off-road and military vehicles tend to use 6BT engine due to its durability and economic power production. The 6BT is built with design and high torque to cater demanding terrains such as off-road or military transport (rocky roads or demanding battlefield terrain).
Advantages of the 6BT 12-Valve Engine
The 6BT 12-valve engine has a number of advantages that have endears it to industries and applications. These are some of the outstanding benefits:
1. Durability and Longevity
The 6BT has been associated with tough design and a very long life. Taking good care of it, the engine can outlive as many as 500, 000 miles. This qualifies it as a great investment to anybody who needs to depend on their vehicle or machinery to perform consistently under extremely long-lasting conditions.
2. Mechanical Simplicity
The 6BT has a mechanical fuel injection system which is quite different in operation than the electronic fuel injection setup found in other engines. This design eases repair and maintenance, and lowers the threat of expensive electronic breakdowns too. Direct maintenance is appreciated by many and the 6BT is a winner in that respect.
3. Fuel Efficiency
In fuel economy, the 6BT engine works very well despite being a diesel engine when compared to its size. The 6BT has a strong mechanical fuel injection and is turbocharged, making it fuel-efficient and economical during long-distance travel and other extended applications, thereby saving on the operating expenses of the owner and companies.
4. Aftermarket Support
Because it is one of the most popular diesel engines ever built, the 6BT has great aftermarket support. It could be looking at replacement parts, performance upgrades, or even custom modifications, but there are so many ways to go about it, in enhancing the abilities of the engine itself, or that you can even swap out parts that have worn out.
Disadvantages of the 6BT 12-Valve Engine
Along with the advantages of the 6BT, there are also some disadvantages that cannot be disregarded before your choice:
1. Age of the Engine
The 6BT has since been discontinued, and replaced by the 24-valve version hence there remain many 6BT engines that are quite old. Although these engines have a very long life of hundreds of thousands of miles, locating parts and vehicles with the engine can be difficult at times. This age aspect also implies that the majority of the available 6BT engines are already worn out.
2. Noise and Vibration
Like most older diesel engines, the 6BT is quite raucous and generates much vibration. This is especially realized when idling or at low speed motions. Though this might not be an issue with heavy-duty trucks or off-road vehicles, the 6BT appears noisier than may otherwise be desired in lighter-duty applications.
3. Lower Horsepower for Some Applications
Although the 6BT is excellent in terms of torque, its horsepower might not be enough to meet high-performance applications that are in demand of higher speeds and power. This deems the engine less optimal in performance based vehicles such as ones that emphasize speed or high end horsepower.
Maintenance Tips for the 6BT 12-Valve Engine
Regular maintenance is necessary in the effort to make your 6BT 12-valve engine last a long time. These are some of the important tips:
- Diesel Engine Oil Change: Diesel engines rely on oil to lubricate these engines. Pick up frequency should be 7,500 to 10,000 miles (depending on application) and change the oil each time. The engine must be taken care of using high quality diesel oil to safeguard the parts.
- Fuel Filter Change: The engine of the 6BT is a mechanical version of fuel injection system, which needs well-maintained fuel. Decent replacement of fuel filter after 10,000-15,000 miles will assist in averting engine damage caused by fuel debris and contaminants.
- Air Element Inspection: Air filters are required to maintain good working of diesel motors. Make sure you check the air filter periodically and change it when necessary to make sure the engine works at full capacity.
- Turbocharger Maintenance: The 6BT turbocharged engine means that the turbocharger should be well maintained. Clean the system regularly and check on the turbo to ensure the system is clean and operating at optimum level.
Conclusion
The 12 valve 6BT engine has developed a reputation of being one of the most foolproof and robust diesel engines in the market. This diesel engine provides excellent performance and life span whether driving a heavy-duty truck, an off-road vehicle, or agricultural machines. This engine is more commonly used because it has a mechanical simplicity, good fuel consumption and durability to withstand wider applications. Regardless of several disadvantages, which include age and noise, the 6BT remains an outstanding engine, which anybody willing to use a long-lasting and reliable diesel engine should consider.
